Rauscher: High-Speed Camera 4 Megapixel - 500 fps

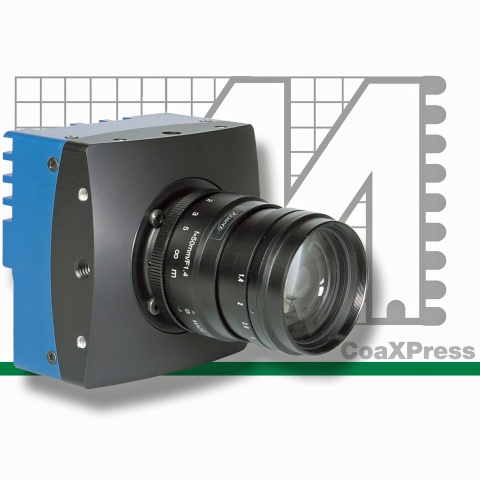

Rauscher presents the Mikrotron EoSens 4CXP camera with CoaXPress interface that meets the requirements for most varied applications, because resolution and speed are variable adjustable. A resolution of 2336x1728 pixels ensures superb image quality with extremely sharp images. With the proven Mikrotron high-speed technology the camera takes up to more than 100.000 frames per second.

The camera's Dynamic Range Adjustment feature allows to change the CMOS sensor's linear transfer characteristic into a non-linear one. Thus, the camera provides clear details even at extreme dark/light contrasts.

The "Freeze Frame" shutter is able to process and store a complete frame while exposing the next image. At exposure times down to 2 µs, this enables even capturing fast moving objects at high definition in synchronous, free run and asynchronous triggered mode.
