When Two Worlds Merge

Plate heat exchangers are widely used in the process industry. High efficiency and cost savings made them standard equipment in some areas. Shell and tube heat exchangers are used where demanding temperature and pressure conditions exist, and they are often used in two phase applications. Plate and Shell heat exchangers from Gesmex are a fusion of these two types and accomplish new ways of plate heat exchanger applications.

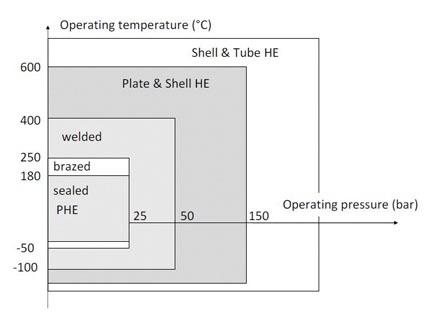

Heat exchangers with circular plates are manufactured since 1988. They consist of a stack of stainless steel plate pairs which form two separate flow channels. Between these flow channels heat is transferred through the plate. This is similar to plate and frame type heat exchangers. Plate heat exchangers manufactured by Gesmex are generally laser-welded. The laser-welding process ensures high quality weld seams. The molten area auf the plate equals 3.5 times the plate thickness. Hence the plate stack is less sensitive to pressure and temperature changes. Additionally the geometric shape of the plate makes tensions spread homogenously in the plate material. This is an advantage compared to rectangular plates. Applications of plate and shell heat exchangers can cover temperatures of 550°C and up to 150 bar.

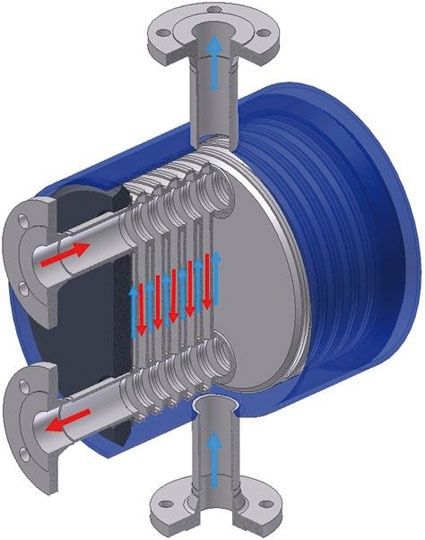

In plate and shell heat exchangers one fluid enters and leaves the plate stack through the shell that is why the plates only have two holes and not four like in plate and frame heat exchangers. A simple parallel flow arrangement is shown in figure 2. The flow channels are sealed against each other by welding. The circumferences of the plates and the edges of the holes are welded alternately.

The possibilities of flow arrangements in plate and shell heat exchangers are as manifold as in plate and frame heat exchangers. Several passes on the shell and plate side are implemented by certain baffle arrangements. Countercurrent, co-current and even cross flow can be achieved. Cross Flow is obtained by turning the stack 90° relative to the flow direction of the shell side fluid. The plates are embossed with corrugations in a usual manner. The different corrugation patterns can be adjusted to different application modes.

Increasing Efficiency and Modernizing Plants

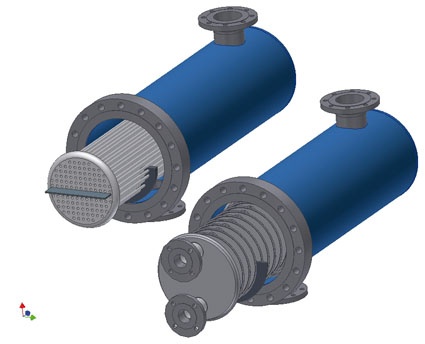

It is not straight forward to substitute shell and tube heat exchangers with plate and frame heat exchangers despite all the benefits like higher heat transfer efficiency and less fouling. Most of the time the piping has to be changed and the decreased volume of the devices lead to different dynamic behavior. Circular plates can be mounted directly inside existent shells. The advantages of the plate stacks remain and changeover-time is short. Additionally the changes of the piping are minimal. The shell is equipped with a lot more heat transfer area with increased heat transfer performance. This leads to higher heat recovery rates and the overall energy costs are diminished. Depending on the role of the heat exchanger in the plant and the cost structure of the plant 20% of operational costs can be saved.  If shell and tube heat exchangers are to be substituted completely it is possible to increase the compactness of the heat exchanger while maintaining all the usual process connections. Smaller shells with the same heat transfer area give faster dynamic behavior and reduce product hold up. This is also true for applications with phase change.

Applications With Phase Change

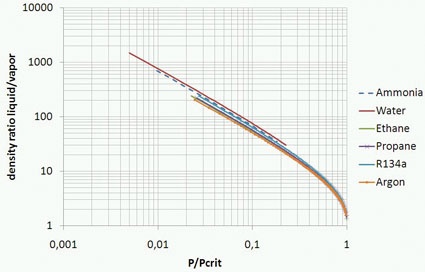

The most dominating effect during phase change in heat exchangers is the rapid change of volume flow rate. Steam has a much higher velocity than the corresponding liquid. If the cross-sectional area remains unchanged the increase of velocity equals the ratio of liquid and vapor density. Figure 4 shows this ratio as a function of reduced pressure. The figure shows that values of 10-1,000 can be reached. Data is depicted in the range from atmospheric pressure to 50 bars. The values will be high if the operating pressure is small compared to the critical pressure of the fluid. High pressure drop is encountered when velocities are high. The increase in pressure drop often outbalances the increase of the heat transfer coefficient which is not desirable. Currently plate and frame evaporators are developed that have big sized steam outlet holes. This reduces the pressure drop at the outlet where a sharp direction change of the fluid additionally takes place. Most of the time the pressure drop dominates the sizing process and the heat exchanger must consist of more plates than necessary for heat exchange needs (oversized).  Inside plate and shell heat exchangers the evaporation takes place on the shell side. The size of the outlet nozzle is chosen independently of the plate size and no sharp direction changes of the steam exist. The pressure drop is also reduced inside the channel between the plates by increasing the cross sectional area with respect to single phase applications. This leads to a minimized over sizing of the heat exchanger.

Kettle-type Evaporator Revived

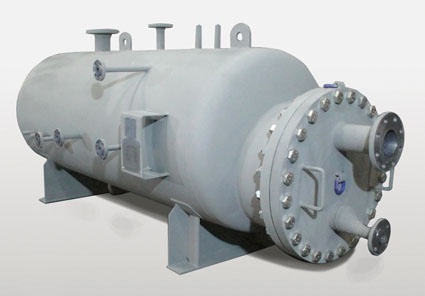

A lot of engineers count on equipment they are familiar with and that has been proven over years. On the other hand they know about the demand of efficiency increase. The concept of plate and shell heat exchangers revives old fashioned devi-ces. Kettle-type evaporators, for example, consist of flooded tubes which are heated mostly by steam condensation inside the tubes. By substituting the tubes by a stack of corrugated plate pairs the evaporator is turned into a plate and shell evaporator. The shell is the same in both devices. The plates are dimensioned that way free convection and pool boiling are achieved. Figure 5 shows such an evaporator, which was built as a secondary evaporator for Gestra in Bremen, Germany, the global leader in the design and production of valves and control systems for heat and process fluid control. The capacity was about 2.3 Mega Watts, mass flow rate 3.5 tons/hour at 12 bars. The diameter of the flange of the vessel is almost the same size as the diameter of the heat exchanger plates. Most parts of the vessel are significantly larger. This extra volume is used to separate entrained droplets from the steam. Additional nozzles can be planned to remove inert-gases.

Shell and tube heat exchanger with tube-side evaporation are used as evaporators with natural or forced circulation. Plate and shell evaporators with natural or forced circulation can be used with shell-side or plate-side evaporation. Shell-side evaporation is mostly preferred because of the possibility of pressure drop optimization as mentioned above.
